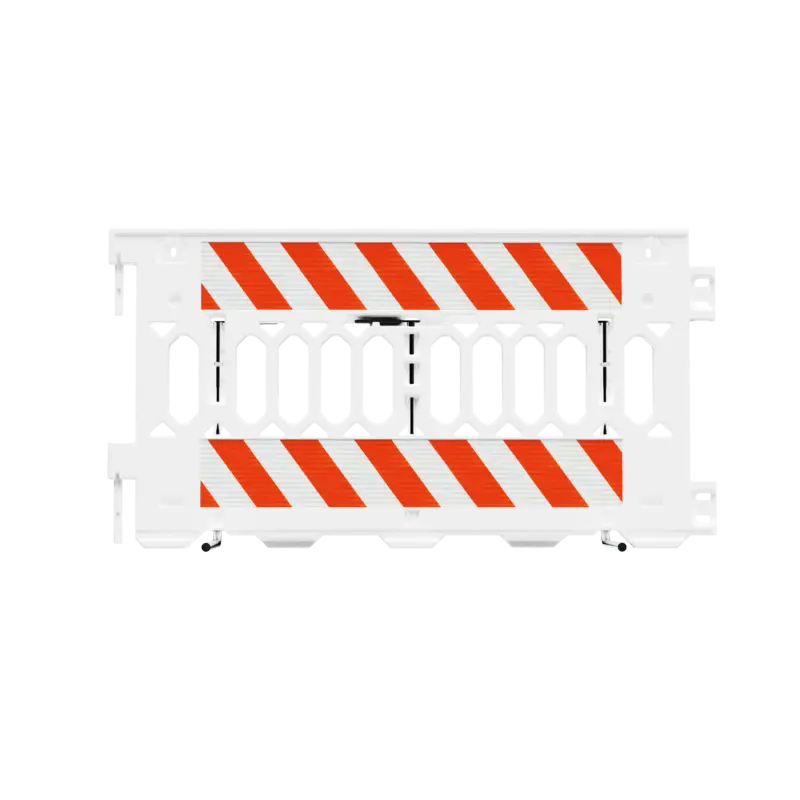

ADA-Compliant Pathcade Barricade System

Description

Multi-Purpose Barricade System

• Crowd Control

• Manhole Guard

• ADA Pedestrian Pathway System

• Longitudinal Channelizing Device

Multi-functional barricade system meets ADA requirements

• 72″L x 38″H
• Continuously detectable edge at barricade top and bottom

Exclusive tripod leg system

• No sandbags needed when using all 3 feet
• Anti-trip foot on one side
• Two larger feet on other side
• Use only larger feet with sandbags for ADA Compliance

Easy handle turn deploys feet

• Unique soft grip handle system
• Quick turn moves feet out or back in

Stack 20% more

• Nesting system allows for 19 units stacked on pallet
• Lowers transportation costs
• Stacking lugs keep units from shifting

Shape to any layout

• Units pivot 120º
• 3 units in triangle layout for manhole guard

Robust dual connectors

• Create easy to use linking system

Smooth, comfortable guardrail

• Rounded edge on top of panel

Four recessed sheeting areas

• Two sheeting areas, 8″ x 50″, on each side of panel
• Your choice of retroreflective striped sheeting

Light shelves for standard barricade lights

• 2 per section

Holes for attaching signage

• Use screws to attach 20″W x 14″H sign

MASH Accepted

• WZ-428
• Meets MUTCD Standards

Made in the U.S.A.

Specifications:

Dimensions: 72″W x 38″H, connected length is 69.4″

Weight: 31 lbs.

Part Number 2008

ADA Pathcade Product Information

ADA Pathcade Instructions

FHWA Acceptance – WZ Letter

Certificate of Compliance

Certificate of Compliance WI

Specification for Oregon and Michigan
