Description
The Best Way To Secure Your S-Panel Concrete Formwork System

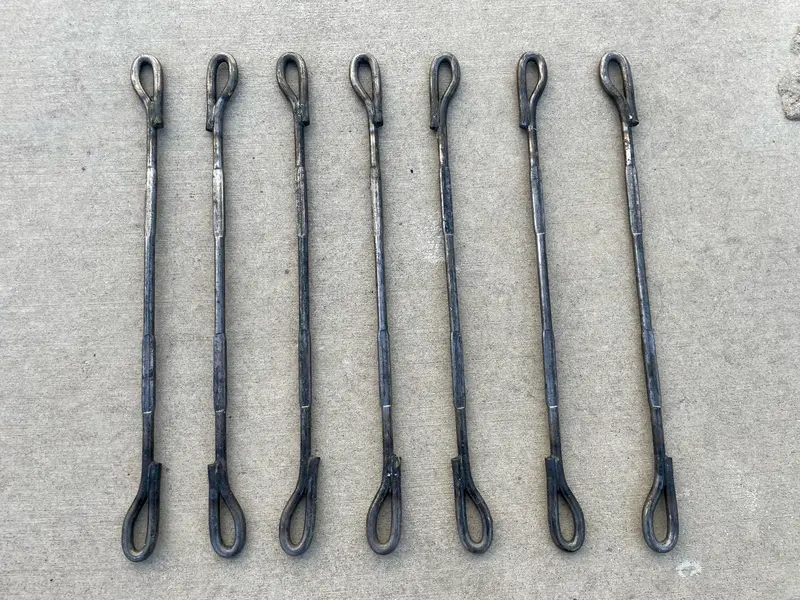

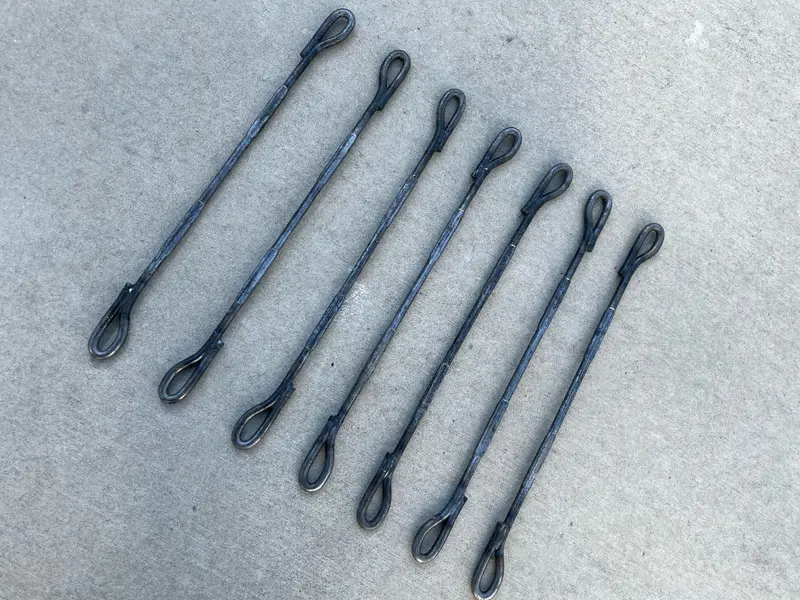

S-Panel ties, also referred to as wire ties, are the go-to concrete loop ties for commercial and industrial structures. These ties secure and evenly space standard steel / plywood modular-panel forming systems, made from heavy duty 4 gauge steel to be able to withstand the high pressures of concrete pouring.

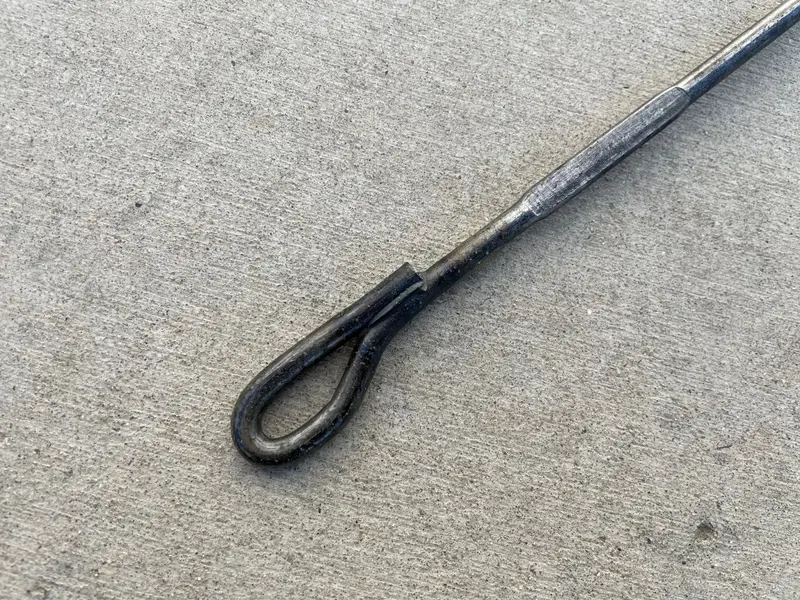

Sandbaggy concrete wire ties are designed with a durable, high-tensile steel construction and feature a loop-end that can be snapped off with a claw hammer for swift post-pour removal. Sandbaggy ties are available at low wholesale prices and arrive in 1-5 business days. Order Today!
Sandbaggy carries a variety of concrete forming supplies.

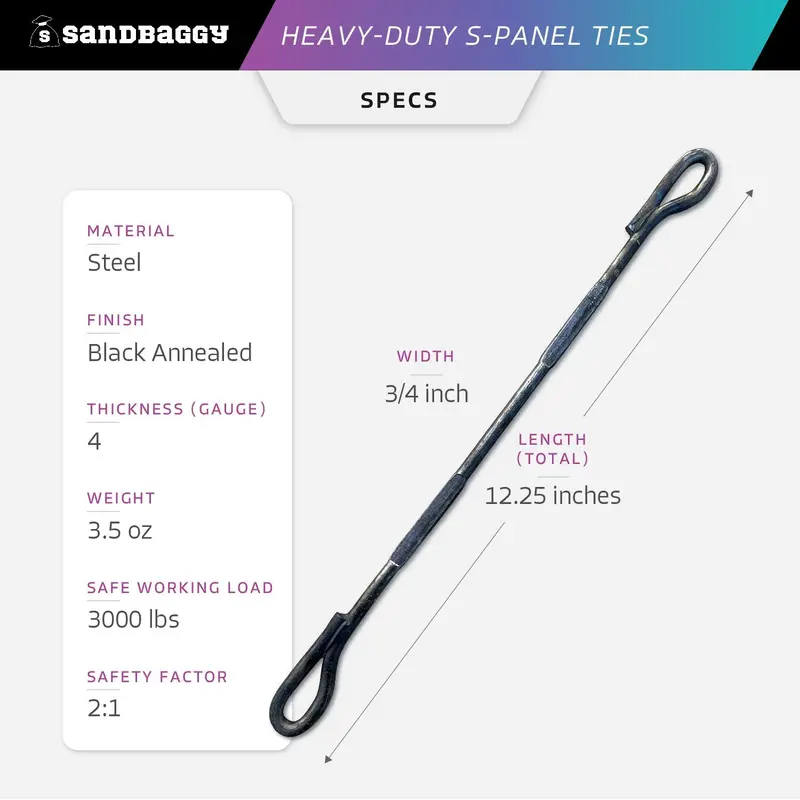

Specs
- Material: Steel
- Finish: Black Annealed
- Length (total): 12.25 inch
- Width: 3/4 inch
- Thickness (Gauge): 4
- Weight: 3.5 oz
- Safe Working Load: 3000 lbs
- Safety Factor: 2:1
Features
- Secures S-Panels together and space them evenly to ensure that your concrete forms stay aligned and accurate when pouring concrete.
- Construction Grade: Made from extra thick 4 gauge black annealed steel, these concrete ties are designed to withstand the high pressures and demands of commercial and industrial construction projects.
- Easy To Remove Ends: Loop ties are easy to remove after concrete has cured. Just twist off the loop ends with a claw hammer
- Safe & Reliable: Heavy-duty loop ties can safely handle loads of up to 3,000 lbs. (2:1 Safety Factor).
- Compatible with Steel-Ply Forming System and other handset modular forming systems for easy use and versatility.
- Construction Contractors Save With Sandbaggy! Available at low wholesale prices, our concrete loop ties are more than 2x more affordable than similar brands on the market.
FAQ
What are loop ties used for?
Loop ties, often known as S-panel or concrete form ties, are designed to secure and space concrete forms. Easily removable with a claw hammer after curing, these ties are crucial for structural stability.
Loop ties are used in a variety of concrete construction projects, including:
- Walls
- Foundations
- Slabs
- Beams
- Columns
- Bridges
- Tunnels
- Other infrastructure projects
What is the difference between a loop tie and a snap tie?
Loop ties feature a breakable loop end, while snap ties feature a removable snap end; both types are concrete form ties.
Loop ties are primarily for concrete forms to be removed post-curing, e.g., wall forms and foundations. Snap ties are designed for reusable forms, e.g., columns and beams.
What are ties do you use for concrete footings?
Loop or snap ties are commonly used to secure concrete footings, based on the footing’s design and supported structure’s weight.
Loop ties are best for shallower or lighter footings, while snap ties are suitable for deep and heavy footings.
